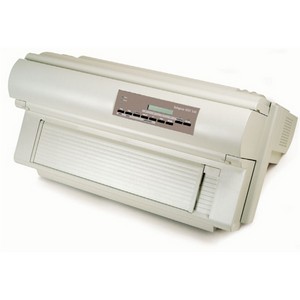

Compuprint 4247-L03 Multiform printer

Manufacturer: Compuprint

Part # 4247-L03


Availability: IN STOCK

REFURBISHED 90 days Warranty

Designed to meet low- to mid-volume output requirements, the Compuprint 4247-L03 can provide reliable supply chain printing at an attractive total cost of ownership. A low-cost alternative to laser technology, the Compuprint 4247-L03 can deliver broad forms flexibility, support for wide-format printing and the convenience of remote printer management. The optional integrated Ethernet attachment allows you to integrate this printer easily into a variety of network environments

Focus on performance and uptime

Reliability and consistent performance are critical to supply chain success. The heavy-duty construction and fast speed of the Compuprint 4247-L03 make it suitable for office-to-warehouse environments that require reliable and efficient point-of-need printing. The remote printer management software, which is included with the optional Ethernet feature, eases setup and minimizes output interruptions. This software enables remote configuration of multiple printers via the user-friendly graphical interface and proactive printer monitoring to provide real-time printer status.

Satisfy output and operator requirements

The Compuprint 4247-L03 provides convenient front-loading primary and secondary paper paths capable of  supporting two applications on one printer. The straight-through paper path design can assure reliable forms feeding while enabling the use of many paper types of varying thicknesses.

HIGHLIGHTS for the 4247-L03

■ Prints up to 720 characters per second for fast, reliable job completion
■ Easy to use operator panel and overlays that support ease of use across the Compuprint 4247 family
■ Rugged design for superior durability in rigorous environments
■ Ease integration with available connectivity - integrated Ethernet, USB 2.0, RS232 serial, and parallel interfaces

Model 4247-L03

Maximum Print Speed @ 10 cpi

Draft mode: 720 cps

Best Draft mode: 400 cps

NLQ mode: 262 cps

LQ mode: 133 cps

Print Method Serial impact

Emulations IBM Proprinter: XL24 /XL24 AGM, 2391 Personal Printer. Epson ESC/P LQ series, ANSI X3.64 and CPG Native Commands Set

Workload2 50,000 pages per month

Throughput 610 pages per hour (ECMA 132)

Vertical Spacing 6, 8, 12 lpi

Horizontal Spacing 10, 12, 15, 17.1, 20, 24 cpi

Maximum Graphics Resolution

360 x 360 dpi

Bar Codes UPC-A, UPC-E, EAN-8, EAN-13, UPC-EAN 2, UPC-EAN 5, Code GP, MSI Plessey, Code BCD, C2/5-3 BAR, Code 39, Code 128, Code 11, Code 93, Codabar, 2/5 Bidirectional, 2/5 Interleaved, 2/5 Industrial, 2/5 Matrix, Postnet

Printhead Type 24 Wire

Rated Printhead Life3 700 million draft characters

Consumables 15 million character black ribbon cartridge (part number 41U2235)

Paper Handling Support for up to two continuous forms paths with optional additional tractor Up to eight-part forms (primary and secondary forms paths) Automatic paper path switching via operator panel or software commands Automatic forms loading and thickness adjustment Automatic forms eject and restore with selectable time out Setting and storage of paper format and printer settings for each paper path in nonvolatile memory Recalling page formats and printer settings using native data stream commands

Paper Type Continuous forms

Paper Size and Thickness4 3 to 17 inches wide and maximum thickness of 0.635 mm (0.025 inches)

Tractor Type Four pin

Connectivity Standard Attachment Choices (choose one):

1 - Parallel and Ethernet

2 - Parallel, Serial (9 pin), USB 2.0



Weight 21 kg (46.3 lbs)

Boxed Weight 33 kg (72.8 lbs)

Size Height - 315 mm (12.21 inches)

Width - 670 mm (26.18 inches)

Depth - 390 mm (15.35 inches)



Boxed Size Height - 590 mm (23.2 inches)

Width - 800 mm (31.5 inches)

Depth - 640 mm (25.2 inches)



Power Voltage 90 to 244 Vac

Power Frequency 50/60 Hz

Power Consumption Maximum 480 VA, typical 300 VA, idle 50 VA

Reliability MTBF 10,000 hours at 25% DC

Drivers Windows® 95, 98, ME, WindowsNT® 4.0, 2000, XP, Windows 7

Temperature (Operating and Storage)

-40° to 50° C (-40° to 122° F) storage

10° to 38° C (50° to 100° F) operating



Humidity 10% to 90% RH (noncondensing) storage

40% to 60% RH (noncondensing) operating

Acoustics 53.9 to 57.4 dBA depending on configuration

Options Additional front push tractor, printer stand
